N-BK7 Penta Prisms


×
  • Ray Deviation of 90°
  • Right Handed Image
  • Optical Tool for Defining a Right Angle
  • Additional Penta Prism Options Available

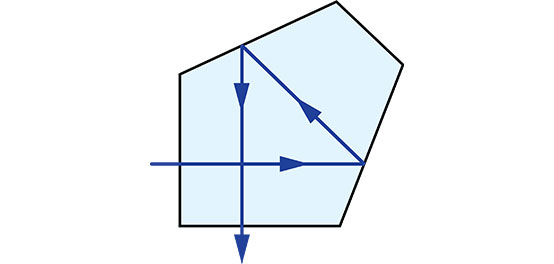

Penta prisms are five-sided prisms featuring a ray deviation of 90° and a right handed image. The reflecting surfaces are aluminized for increased efficiency. Slight movement of the prism does not affect the true right angle at which light rays are reflected, making a penta prism the ideal optical tool for defining a right angle in an optical system. TECHSPEC® N-BK7 Penta Prisms are made from precision N-BK7 for use in a variety of visible light applications.

Technical Information

TECHSPEC® Penta Prism Dimensions
Stock No. Coating Dimensions
A B C D
#85-159 VIS 0° 0.50 0.50 0.50 0.60
#85-160 VIS 0° 1.00 1.00 1.00 1.20
#45-112 MgF2 5.00 5.00 5.00 6.10
#48-595 VIS 0°
#32-030 MgF2 10.00 10.00 10.00 11.95
#48-596 VIS 0°
#43-502 MgF2 15.00 15.00 15.00 15.96
#48-597 VIS 0°
#31-051 MgF2 20.00 20.00 20.00 21.65
#48-598 VIS 0°
#42-779 MgF2 25.00 25.00 25.00 27.90
#47-458 MgF2
#48-599 VIS 0°
#45-073 MgF2 30.00 30.00 30.00 32.47
#48-600 VIS 0°
#45-402 MgF2 35.00 35.00 35.00 37.88
#48-601 VIS 0°
#45-674 MgF2 40.00 40.00 40.00 43.30
#48-602 VIS 0°
#45-675 MgF2 45.00 45.00 45.00 48.71
#48-603 VIS 0°
#45-676 MgF2 50.00 50.00 50.00 54.12
#47-459 MgF2
#48-604 VIS 0°
