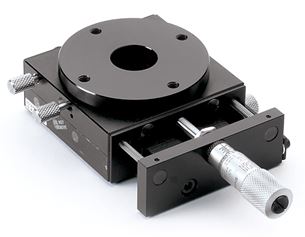

2.44" Diameter Linear-Rotary Positioning Stage

Linear-Rotary Positioning Stage, #38-198

×
Stock #38-198 Clearance 3-5 days
×
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
A$1,561.60
Qty 1+
A$1,561.60
Volume Pricing
Request Quote
Get Product Downloads
Type of Movement:
Linear (X) & Rotary
Type of Drive:
English Micrometer
Drive Orientation:
Center Drive
Type:
English
Stage Size (mm):
66.5 x 66.5
Travel (inches):
0.5
Travel (°):
±5 (Fine), 360 (Coarse)
Center Hole:
0.75" Dia. Thru
Construction:
Aluminum Top and Base; Steel Tangent Arm Drive
Graduation (inches):
0.001
Load Capacity, Normal (lbs):
5
Mounting Threads:
(4) 10-32 on 2" Dia. B.C.
Stage Size (inches):
2.62 x 2.62
Straight Line Accuracy (inches):
0.0001
Weight (lbs):
1

Regulatory Compliance

RoHS 2015:
Compliant
×
Certificate of Conformance:
View
×

Product Family Description

  • Compact Stage with Both Linear and Rotary Positioning
  • Linear Adjustment with a Fine Resolution Micrometer
  • Coarse or Fine Rotary Adjustment

A compact linear and rotary positioning stage designed for applications where space does not allow stacking of a linear and a rotary stage. The mounting surface is 2.44" diameter with a 0.75" diameter thru hole, with four 10-32 threaded mounting holes on 2.00" centers. Linear travel is adjusted with a fine resolution micrometer. Rotary travel has both a coarse and a fine adjustment for quick rotation over a continuous 360° range, plus precise angular adjustment at any position. Aluminum-stainless steel. Includes locking bar for linear travel.
