Family ID The Family ID is used to identify product family presentations and can be used to quickly access presentations utilizing the search. #2034

Dove Prisms

  • Image Rotation of 180°
  • Left Handed Image
  • Ideal for Rotation or Displaced Retroreflection

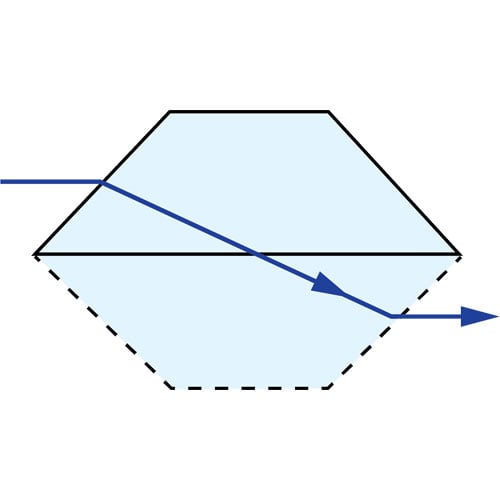

Dove prisms have an unusual and very interesting characteristic — if you look through the prism and rotate it around a longitudinal axis, the image rotates through twice the angle through which the dove prism itself rotates. For optimal peformance, use dove prisms with collimated light. The top surface of each TECHSPEC® Dove Prism is ground and the longest length (specified by dimension B) features an unbeveled sharp edge.

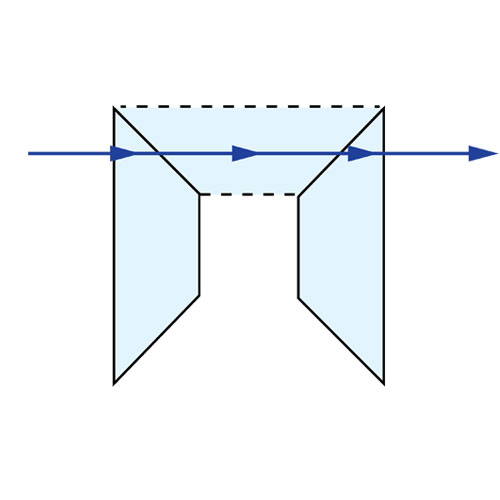

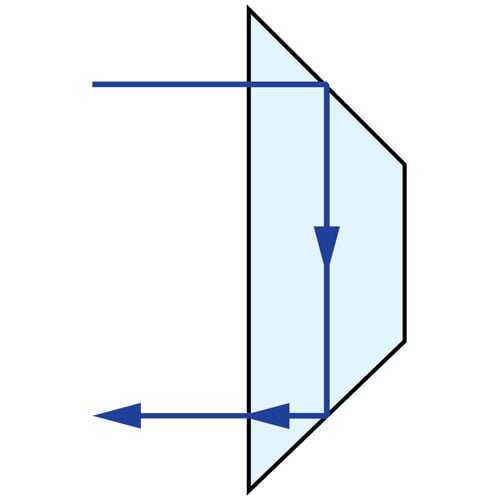

TECHSPEC® Dove Prisms are offered uncoated, with anti-reflection coated diagonal faces, or with aluminized diagonal faces. Aluminized dove prisms feature a protected aluminum coating with black Krylon paint on the diagonal faces and are ideal for displaced retroreflection. They provide a u-turn for incident laser beam light.

Reflection is displaced 49mm (in 15mm sizes) or 75mm (in 25mm sizes) when incident rays are centered on the diagonal face. Aluminized TECHSPEC® Dove Prisms can be used in imaging systems (with fields of view less than dimension A/ dimension C) to view areas behind the camera or around corners. They can also provide a split image, where one scene is displaced relative to the other.

Technical Information

Stock No. A B C D
#85-155 0.50mm 2.10mm 0.50mm 0.70mm
#85-156 1.00mm 4.20mm 1.00mm 1.40mm
#85-157 2.00mm 8.40mm 2.00mm 2.80mm
#85-158 3.00mm 12.60mm 3.00mm 4.20mm
#32-998 5.00mm 21.14mm 5.00mm 7.07mm
#32-999 10.0mm 43.96mm 10.0mm 14.14mm
#32-553 15.00mm 64.00mm 15.00mm 21.21mm
#31-055 18.00mm 76.10mm 18.00mm 25.45mm
#32-554 20.00mm 81.30mm 20.00mm 28.28mm
#45-403 25.00mm 105.68mm 25.00mm 35.36mm
